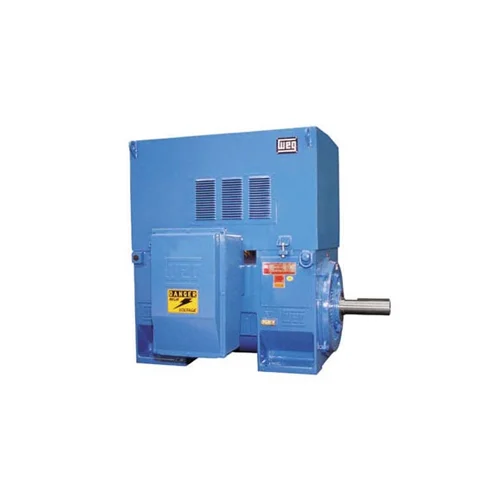

M Line - MGP - Medium Voltage - WPII
M Line - MGP - Medium Voltage - WPII
$0.00
WEG Medium Voltage Motors present design optimized construction and are manufactured in robust frames for all applications including severe duty.
- 2300 to 6600 V
- 2 to 8 poles
- 5000 to 6800 frames
- Mounting: horizontal
- Service duty: continuos
- Class of insulation: F
- Service factor: 1.0
- Temperature rise: 80 °C by resistance
- Ambient temperature: 40 °C
- Altitude: 1000 m
- Temperature detector: Pt100, 1 per bearing with 3 wires
- Temperature detector: Pt100, 2 per phase with 3 wires
- Two accessory terminal boxes, one for signal accessories and the other for those accessories requiring power supply (space heaters)
- Single phase space heater
- Labyrinth tachonite seal (grease lubricated bearings)
- Antifriction bearings
- Painting: Acrylic polyurethane polyamide epoxy (final coat: Blue RAL 5007)
- Stainless steel nameplate
- Grounding lug on the frame and terminal box
- Copper bar rotor
- 03 connection terminals in the terminal box (terminal block)
