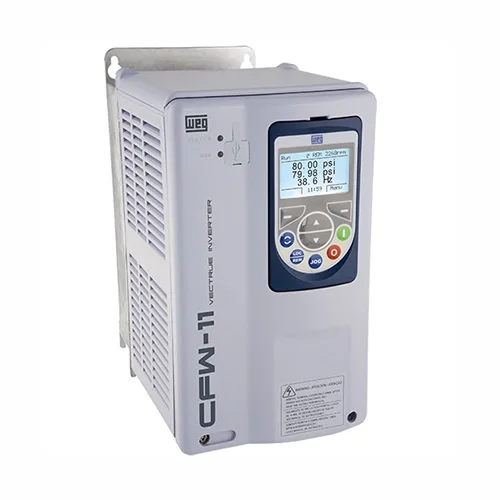

CFW11 System Drive
CFW11 System Drive
$0.00
Complex systems require the most advanced drive. The CFW11 covers power levels from 1.1 to 630 kW (1.5 to 900 HP).
- V / F (scalar), Sensorless Vectorial control and Closed Loop Vectorial Control
- Senusoidal PWM modulation - Space Vector Modulation
- Normal and Heavy Duty Applications
- EMC filters (built-in)
- Built-in Inductors in the DC link (No need input reactor)
- All the electronic boards are conformally coated
- SoftPLC function built-in
- Built-in PID Controller
- Local graphic HMI with real-time clock as standard (optional)
- Trace Funcion by WEG Software
- PLC Accessory - PLC 11-01 (Opcional)
- Flash Memory Model
- USB Connection
- Protection Degree IP20 as standard, IP21/NEMA1 by using accessories and IP54 as an optional up to 75kW
- Communication protocols: Modbus RTU (RS-232 and RS-485), CANopen, DeviceNet, Profibus DP/DPV1, Profinet, Modbus-TCP, EtherNET/IP, EtherCAT, BACnet
- WLP and SuperDrive G2 free softwares
